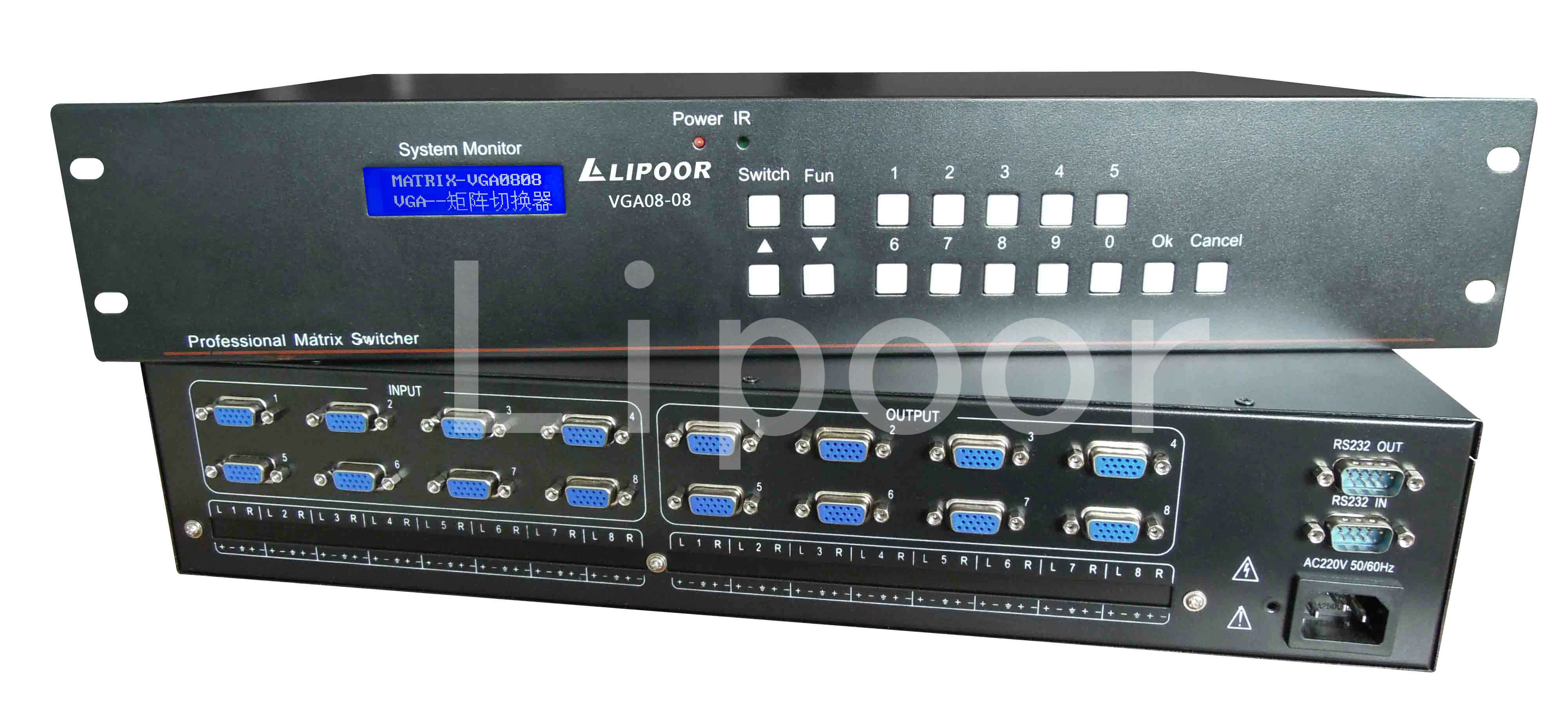

VGA 08-08 VGA matrix

VGA matrix switcher series is designed for computer and video equipment display signal and high resolution digital image signal VGA display switch and professional design of high performance broadband intelligent matrix switch devices, with output any road distribution function, select the multichannel input signal output all the way or multiple respectively output to the display device, all the way along the way will also be input signal output all the way in any or multiple output at the same time. This series of products can be widely used in large screen display engineering, multimedia teaching, lecture hall, military command and control center, hotel, traffic monitoring, multimedia conference room, audio-visual exhibition hall, etc.

↘ routing specification: 4/8/16/32 channel video signal input, 1/4/8/16/24/32 channel video output signal, can be completely cross switch

↘ using the latest 32-bit ARM11 embedded processors, with the power switch memory protection

↘ built-in 32 group scene storage capabilities, can directly on the panel or infrared remote sensing operation

↘ built-in 32 group scene storage capabilities, can directly on the panel or infrared remote sensing operation

↘ LCD screen display, display channel switching status information and input signal characteristics

↘ Rs232 communication interface, convenient and computer, remote control system, or a variety of remote control equipment

↘ all compatible with the market similar products code and instructions

↘ machine cascade can be realized ID address setting, most can cascade 255 matrix

↘ control mode: button, remote control, RS232, touch screen, control system and Ethernet

↘ signal types: GA, RGBHV, RGBS RGsB, RsGsBs, HDTV

↘ control protocol: 9600 baud, 8, 1 stop bit, and white parity checking

↘ serial interface: 2 = TX, 3 = RX, 5 = GND

↘ power supply: AC110-220 - v, 50/60 Hz
