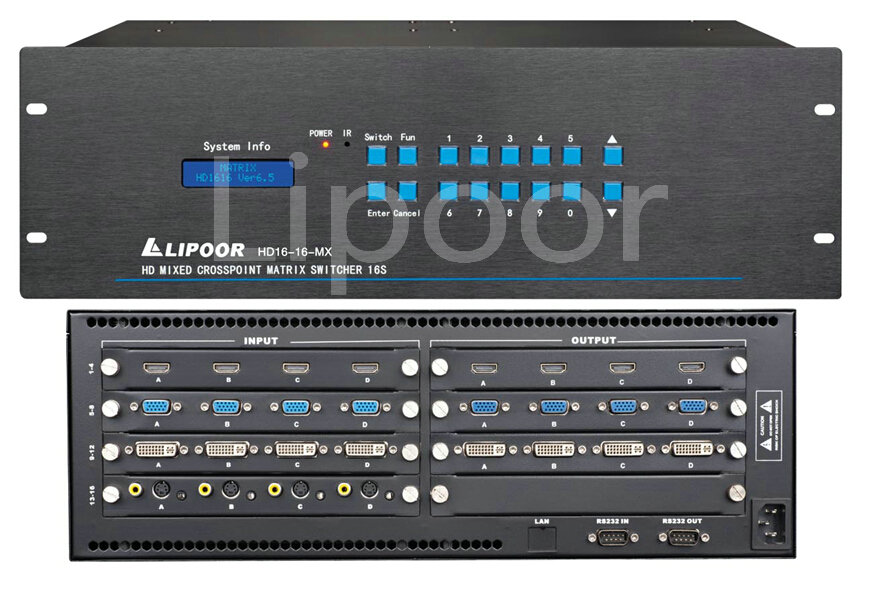

Hd modular hybrid matrix is a high-performance hd audio and video signal switching equipment, supporting 4 ~ 32 channels signal input, 4 ~ 32 channel signal output. Products one of the biggest characteristic is to support a variety of video formats signal input, can be used for multiple high-definition digital signal input, output, exchange, any all the signal output are free to choose any signal source and the output of the not interfere with the other all the way, make the signal transmission attenuation, fell to a low to high fidelity graphics and sound signal output. Hd mixed matrix host, support up to 32 road input and output, input and output can be any combination.

↘ modular design, plug-in structure

↘ support 4/8/12/16/20/16/20/32 channel switch video signal input and output

↘ manual button of the key body adopts the technology of the wear

↘ support HDMI, DVI - D, SD/HD / 3 g - SDI, VGA, AV, YPbPr signal input

↘ support HDMI, DVI -i, VGA, YPbPr signal output

↘ supports a maximum resolution of 1920 x 1200 @ 60 hz, 2048 x 1080 p @ 60 hz

↘ front panel is equipped with LCD screen, real-time display input and output status, for any operation of the matrix has a corresponding state light display

↘ offers a variety of control port: RS232 and network control port and the front panel buttons

↘ support 10 kinds of scene memory and the call

↘ for HDMI support HDCP signal, also can parse HDCP

↘ for VGA signal source and the VISA in the resolution of HDTV standard display devices, can adjust the vertical and horizontal resolution, the line frequency and the field frequency, contrast and brightness

↘ when matrix power loss in the process of running after the restart, matrix corresponding to each input and output status will keep the memory, same as before the power outage, do not have any change, do not need to reset

↘ DVI/HDMI input board support EDID programming

↘ automatically the DVI/HDMI input digital signal cable is balanced, to extend the signal source equipment to the transmission distance matrix

↘ each signal has independent category 4 gain control function, solving the problem of signal attenuation or picture white

↘ attached to the android APP software, can be directly through the android tablet computer signal switching

↘ with PC control software, apply to the Windows xp / 7 system, can through the computer signal switching
