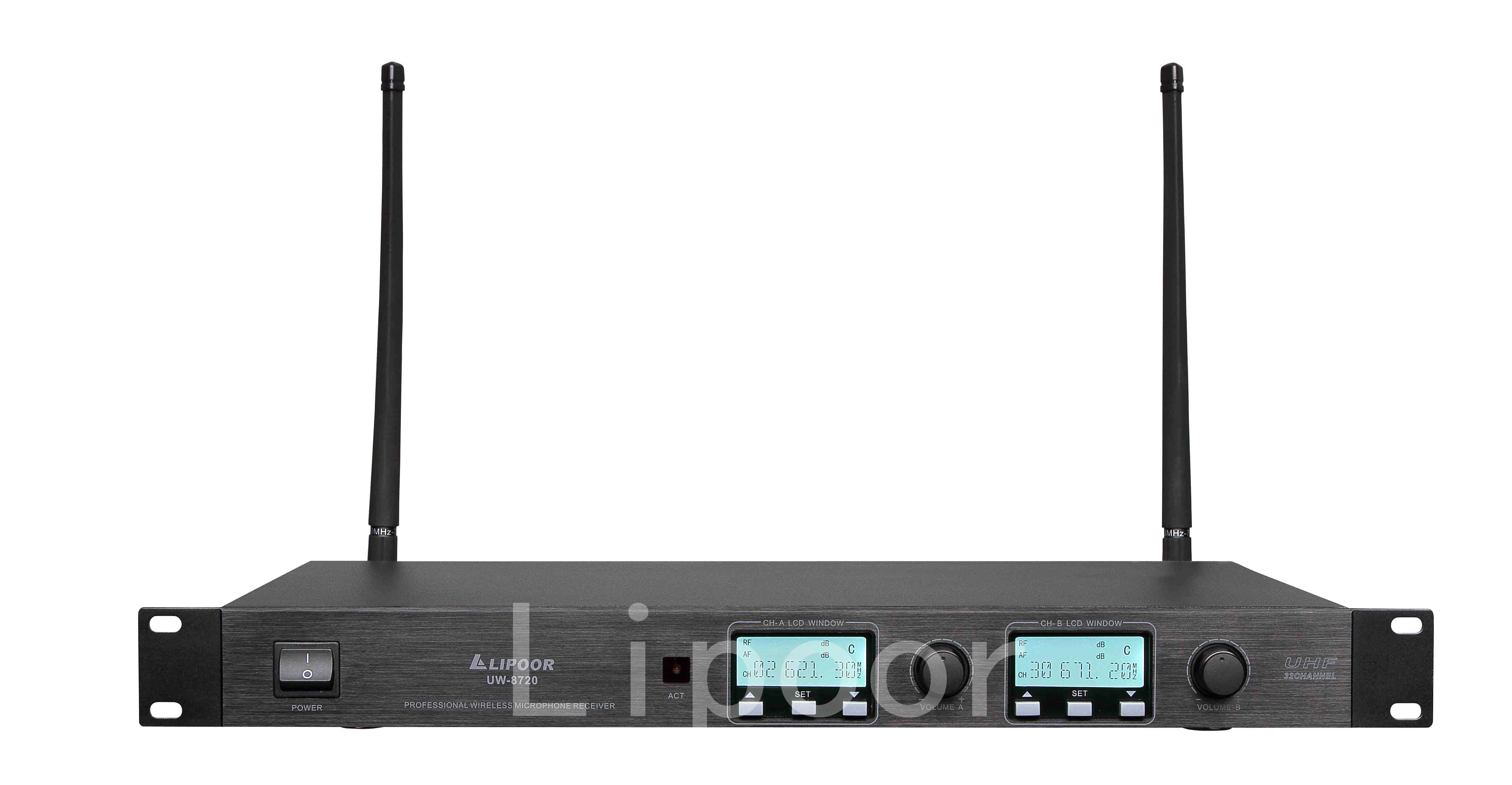

Infrared frequency of multi-channel wireless meeting microphone. With less noise interference of UHF frequency band PLL phase locking technology. CPU control by microcomputer. All metal material standard chassis, metal panel configuration respectively each channel receiver, LCD screen assembly, using electronic operation button control panel. Host respectively provide balanced audio output socket, every road and mixed unbalanced output, comprehensive to meet the needs of all kinds of connections. Meeting with independent design, high fidelity metal cartridge, 3.5 -inch LCD screen display, working parameters. For senior meeting engineering installation use of first choice.

Receiver parameters:

↘ oscillation mode: phase-locked loop frequency synthesis

↘ frequency range: UHF 500 MHZ to 900 MHZ

↘ frequency stability: plus or minus 0.001% UHF 500 MHZ to 900 MHZ

↘ maximum frequency deviation: plus or minus 50 KHZ

↘ modulation mode: FM

↘ signal-to-noise ratio: > 105 db

↘ distortion: < 0.5% @ 1 KHZ

↘ sensitivity: 1.2 / UV @ S/N = 12 db

↘ power supply: DC 12 v ~ 17 v

↘ audio output: independent 0 ~ 400 mv mixed 0 ~ 400 mv

The emitter parameters:

↘ power supply: DC 6 V (1.5 V AA * 4)

↘ microphone power consumption: 150 ma

↘ carrier frequency: UHF 500 MHZ to 900 MHZ

↘ signal-to-noise ratio: > 105 db

↘ adjacent frequency interference than: > 80 db

↘ dynamic range: 100 db or higher

↘ types: capacitance

↘ polarity modes: single directivity

↘ frequency response: 40 hz ~ 20 KHZ

↘ microphone sensitivity: - 47 + / - 3 db @ 1 KHZ
