System introduction

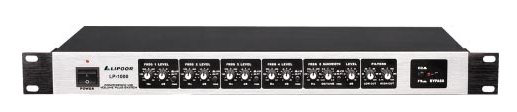

LP - 1000 is a professional of anti noise processor designed for conference room, the product adopts the latest digital intelligence

Can technology of frequency shift and the feedback inhibition method, can effectively suppress the noise, it emphatically solve amplification stability and sensitivity

And amplification of clarity that three problems, artificial acoustic feedback effectively, significantly reduced the microphone noise, make the phone

Sound transmission gain (3 db - 11 db) to obtain maximum amount of space, so that the entire audio equipment potential also get most

Limit.

Technical parameters

Low parametric equalizer five period of weak type:

Frequency response range: 20 hz - 20 KHZ

Frequency adjusting range: switch selector switch (equilibrium) : X1 (100 hz - 2 KHZ) x10 (1 KHZ - 20 KHZ)

Biggest weakness, 1-4 channel filter to 15 db

Standing wave points frequency control mode: sweep frequency control

Paragraph 5 gain control: 15 db - + 12 db

Bandwidth control: 0.03 2 octave

Low level control

Low cut frequency control range: 10 hz - 250 hz

High cutting frequency control range: 3.1 KHz - 40 KHz

Scope: low frequency 50 hz - 20 KHZ plus or minus 3 db

Low signal input range: 0-5 v

Low degree of nonlinear distortion: 0.15% or less

Low frequency response: no frequency shift status: 20 hz - 20 KHZ frequency shift largest state: 50 hz to 15 KHZ

Low input impedance: balance input impedance 20 k Ω 10 k Ω unbalanced input impedance

Low distortion: 0.15% or less

Low working power supply: 220 v50hz
