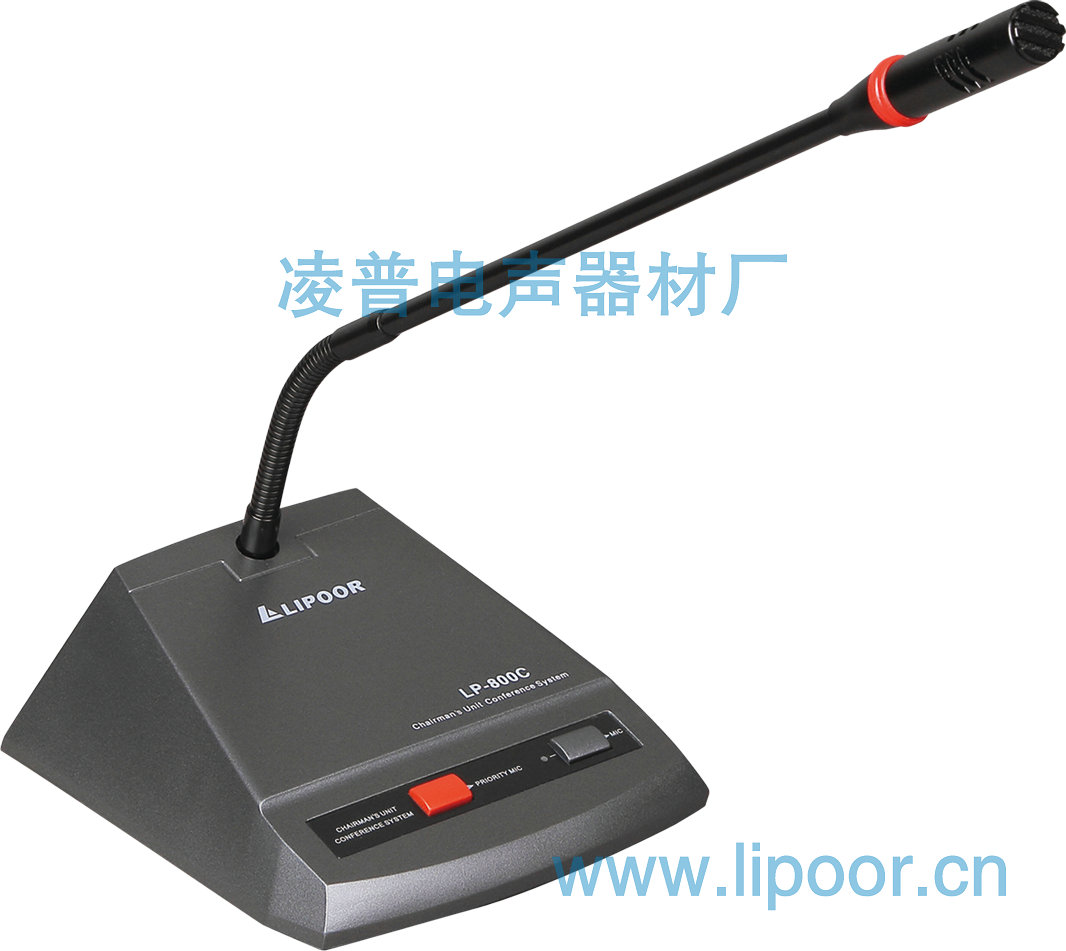

LP - 800 - c/LP - 800 - d

↘ sensor types: capacitance

↘ point features: super cardioid single point

↘ frequency response: 70 hz - 16000 hz

↘ sensitivity: - 47 + / - 3 db @ 1 KHZ

↘ input voltage: 18 v (central processing unit (CPU) power supply)

↘ minimum output impedance: 1 k Ω

↘ total distortion < 3% maximum sound pressure: 124 db

↘ equivalent input noise sound pressure: 24 db (A)

↘ signal-to-noise ratio: 68 db (A)

↘ data transmission line: 2.1 m 8 p shielded wire

↘ mobile phone design, RF radio frequency interference resistance, in line with modern meeting environmental requirements

↘ CPU can be selected according to the requirements of using LP - 800 - m or LP - 800 - b (please see page 31) function parameters
