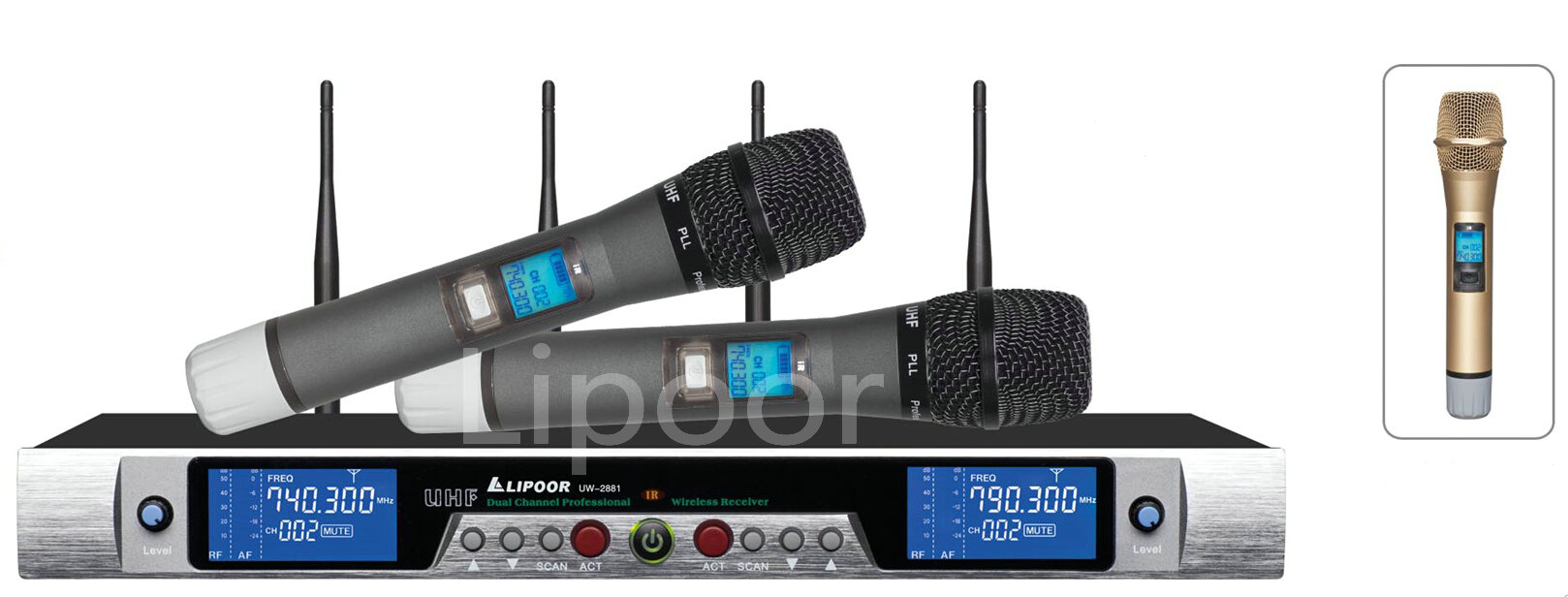

UW - 2881 type diversity reception professional performance

True diversity design infrared automatic frequency channel 2 wireless microphones, receiving distance of 150 meters, the built-in four receiving circuit, any a microphone, there are two receiving circuit for receiving at the same time, with less noise interference of UHF frequency band PLL phase locking technology. Microcomputer CPU control, secondary frequency conversion technology, sound reduction degree is high, hand-held metal drop excellent results. 200 channels to choose from, regardless of the channel, it is more convenient to use. Suitable for high-grade professional stage singing, speech, conference, install and use the club.

Receiver technology parameters:

↘ SCAN a key to avoid the interference function

↘ frequency range: 740-820 MHZ

↘ oscillation modes: dual phase locking frequency synthesis (PLL)

↘ adjust way: FM

↘ maximum deviation: plus or minus 50 KHZ

↘ sensitivity: 18 dbuv (adjustable)

↘ signal-to-noise ratio: 89 db or higher

↘ audio response: 60 hz to 15 KHZ (plus or minus 3 db)

↘ audio output: 0-300 mv / 300 Ω

↘ equilibrium output: 0-300 mv / 300 Ω

↘ dynamic range: 105 db or higher

↘ display: LCD display screen channel number

↘ working voltage: DC 12 v

↘ working current: 1000 ma

↘ working temperature: - 10 ℃ to + 40 ℃
