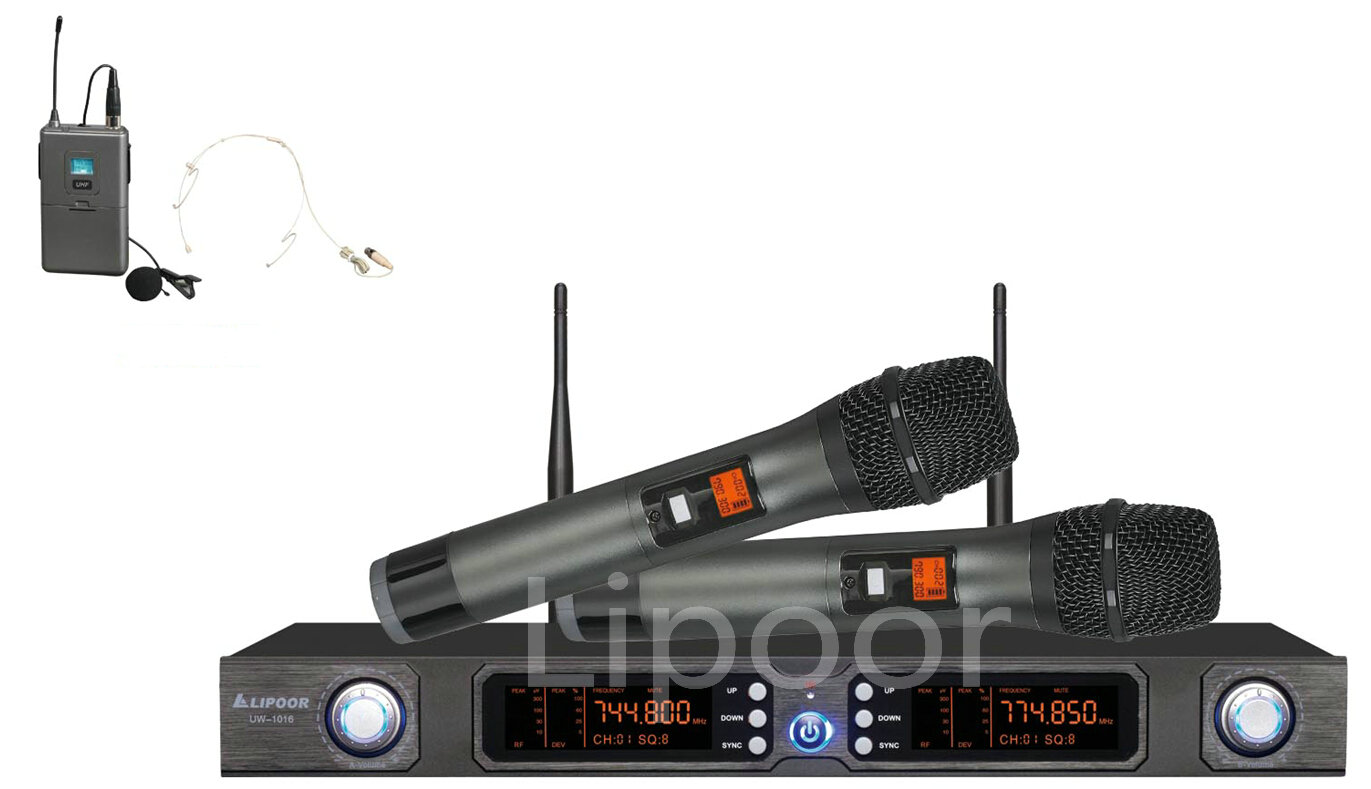

UW - 1016.

Receiver parameters:

↘ oscillation mode: phase-locked loop frequency synthesis

↘ frequency range: UHF 500 MHZ to 900 MHZ

↘ frequency stability: plus or minus 0.001% UHF 500 MHZ to 900 MHZ

↘ maximum frequency deviation: plus or minus 50 KHZ

↘ modulation mode: FM

↘ signal-to-noise ratio: > 105 db

↘ distortion: < 0.5% @ 1 KHZ

↘ sensitivity: 1.2 / UV @ S/N = 12 db

↘ power supply: DC 12 v ~ 17 v

↘ audio output: independent 0 ~ 400 mv mixed 0 ~ 400 mv

Transmitter:

↘ oscillation modes: phase locking frequency synthesis (PLL)

↘ carrier frequencies: UHF 730 ~ 850 MHZ

↘ band width: 50 MHZ

↘ frequency adjustment: automatically after lock receiver channel work

↘ output power: 20 mw

↘ harmonic radiation: < - 55 DBC

↘ maximum deviation degree: plus or minus 45 KHZ

↘ frequency stability: plus or minus 0.005%

↘ power supply: DC3V (1.5 V AA * 2)
