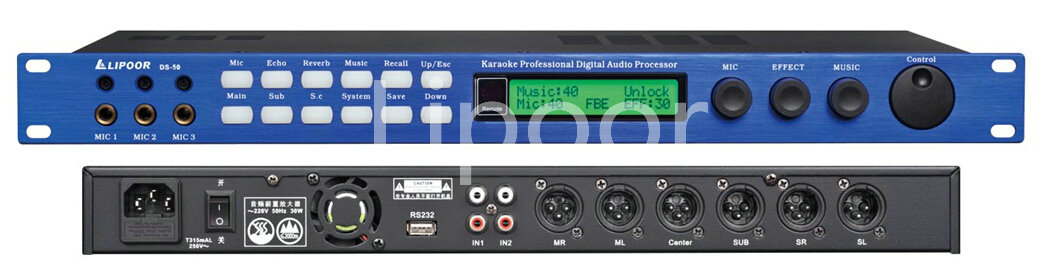

DS - 50 level before digital audio

↘ karaoke effects with speaker processor functions, function of each part can be adjusted independently.

↘ using 2 - bit data bus and 32 bit DSP.

↘ music has seven parameter equilibrium. Music to the main output high-pass filter: 12 db / 24 db (0 hz - 303 hz)

↘ receiver has 15 parameter equilibrium. Mike wind pressure limit function.

↘ the main output has 5 parameter equilibrium. A compression limiting device.

Rear ↘ in output, output and low equilibrium has three parameters.

↘ microphone has four kinds of feedback inhibition modes: OFF 1 2 3.

↘ can store 16 kinds of mode.

↘ microphone output, the main output, the output and the subwoofer output, rear with pressure limit output and time delay function.

↘ in management mode and user mode, user mode cannot store after adjusting parameters.

↘, this machine is equipped with a fully functional menu can be set up by powerful PC interface.

↘ maximum input level: 4 v (RMS)

↘ maximum output level: 4 v (RMS)

↘ music channel gain: MAX: 12 db

↘ microphone sensitivity: 64 mv (Out: 4 v)

↘ signal-to-noise ratio: > 80 db

↘ input voltage: ~ 220 v, 50 hz
