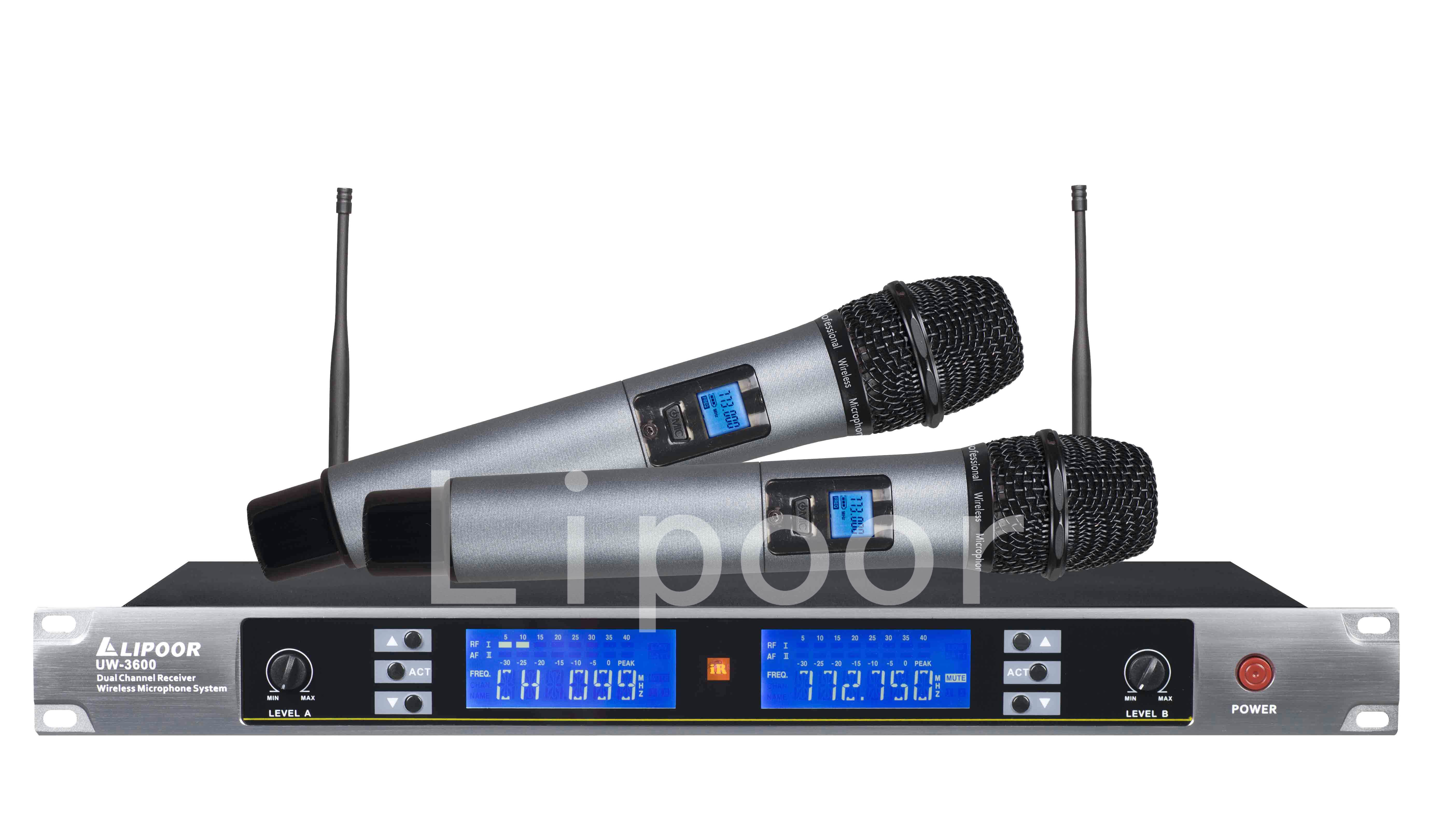

UW - 3600 infrared automatic frequency of two channels of the wireless microphone, as long as one click, you can lock without interference frequency points, selection of 200 frequency points. Handheld metal, durable, and design with charging function and LED LCD screen display transmission frequency, battery information, etc. The RF transmission power level is adjustable, with A lock function of frequency, more energy saving, light touch the power switch, keep wired microphone the characteristics of convenient use, high fidelity microphone mi heart, voice clear, both A and B channel, use more convenient, suitable for A variety of situations, places for outdoor performances, KTV senior preferred.

Receiver parameters:

↘ receive channels: 2 channels

↘ frequency response: 80 hz - 18 KHZ

↘ maximum deviation: - 45 KHZ

↘ miscellaneous letter inhibition: 80 db or higher

↘ mirror inhibition: 80 db or higher

↘ sensitivity: 6 db mu V S/N > 80 db

↘ comprehensive T.H.D. : < 0.5% @ 1 KHZ

↘ comprehensive signal-to-noise ratio: 105 dB

↘ working voltage: 11-16 v DC: 105 dB

Transmitter parameters:

↘ oscillation modes: phase locking frequency synthesis (PLL)

↘ carrier frequencies: UHF 720 ~ 820 MHZ

↘ band width: 50 MHZ

↘ frequency adjustment: automatically after lock receiver channel work

↘ output power: power 30 mw, and the power of 3 mw

↘ harmonic radiation: < - 55 DBC

↘ maximum deviation degree: plus or minus 45 KHZ

↘ frequency stability: plus or minus 0.005%
